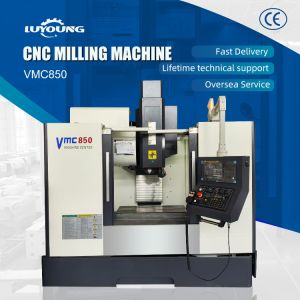

The VMC850 Vertical Machining Center is a high-performance, high-rigidity universal CNC machining equipment, widely used in machinery manufacturing, mold processing, auto parts, aerospace components and other industries. It features high precision and efficiency, capable of integrating multiple complex processes such as milling, drilling, boring, tapping, and reaming.
- Stable Structure:Adopts integral cast iron bed and column, which undergo aging treatment to eliminate internal stress, significantly improving equipment rigidity and vibration resistance, and ensuring long-term machining precision stability;
- High-Precision Machining:X/Y/Z axes are equipped with high-precision ball screws and linear guides, enabling smooth movement without backlash. The positioning accuracy and repeat positioning accuracy can reach within ±0.005mm, meeting the requirements of precision part processing;
- Efficient Spindle System:Equipped with a high-power variable-frequency spindle (usually 7.5-11kW) with a speed range of 8000-12000rpm, featuring excellent high-speed cutting performance and suitable for processing various materials such as steel, iron, aluminum, copper, and plastic;
- Flexible Feeding System:The rapid traverse speed of X/Y/Z axes can reach 36-48m/min, with a wide feed rate adjustment range (1-10000mm/min), balancing high-speed positioning and precision cutting;
- Intelligent Operation:Equipped with FANUC, SINUMERIK or high-end domestic CNC systems (e.g., Huazhong CNC, GSK), featuring an intuitive operation interface. It supports CAD/CAM automatic programming, compatible with G-code and M-code, easy for beginners to operate;
- Strong Expandability:Optional accessories include tool magazine (16-24 tools), automatic chip conveyor, coolant system, 4th axis turntable, etc., suitable for mass production and complex workpiece processing;
- Energy Conservation & Environmental Protection:Adopts energy-saving motors and optimized hydraulic/pneumatic systems, with low energy consumption and noise, complying with modern industrial environmental protection requirements.
